Omni-Route® Mini Plus

The Omni-Route® Mini Plus provides the same as Omni-Route ® Mini with a video encoder.

Overview
Specification
Documentation

The Omni-Route Mini Plus is designed to  provide:

  • Cellular WAN
    • A pair of Data Sims - only one active at a time.
    • SIM auto switch can be due to:
      • Active SIM signal level falling below a set level
      • Active SIM running out of its data allowance
  • 16 WiFi access points
  • Video Encoder
Feature Number Note
Antennas
WiFi 1
GPS 1
Cellular 2
WiFi LAN Access Point
Connection Type 2.4 Ghz 4
Max SSID's 16
Max Users 60 3
RJ45 LAN
Ports Optional 9,10
WAN's
Cellular Modem 1 7
SIM's 2 6
WiFi Optional
RJ45 Optional 5,9,10
USB 0
Configuration
Operates on Omni-Hub.Net Optional
SpeedFusion Features VPN Only 1,8
Omni-Serve Yes
HDMI, HDSDI or Analogue Video input Yes
Power
Built in battery 10 Ah 1
External 3A mains charger 1
External 12 volt vehicle charger 1
External 12v input 9-36vDC Yes
Approximate run time from full charge - Hours 6+
Case
Approximate Weight - Kg 6
Certification CE
Dimensions (L x W x H) L14.3" x W11.1" x H4.7" L363mm x W282mm x H120mm
Padlock holes 0.3"
Base unit colour is black. 2
Notes
1. No option to increase number of peers.
2. Options for other colours.
3. This is not a hard limit. It is based on a fair distribution of process types.
4. The frequency range for 802.11b/g/n Wi-Fi is 2412−2472 MHz.
5. Physical LAN as WAN.
6. Unit can operate on 1 SIM per modem only.
7. Modem is LTE.
8. Use of SpeedFusion features requires Peplink head end.
9. Speed 10/100 Mhz
10. RJ45 ports can be added to the case, to utilise the router RJ45 ports but standard operation is via WiFi. The Plus models use one router LAN port for the in-built Omni-Serve.
Document Name Download Last update
Datasheet On Request
Quick start quide On Request

Primary Sidebar

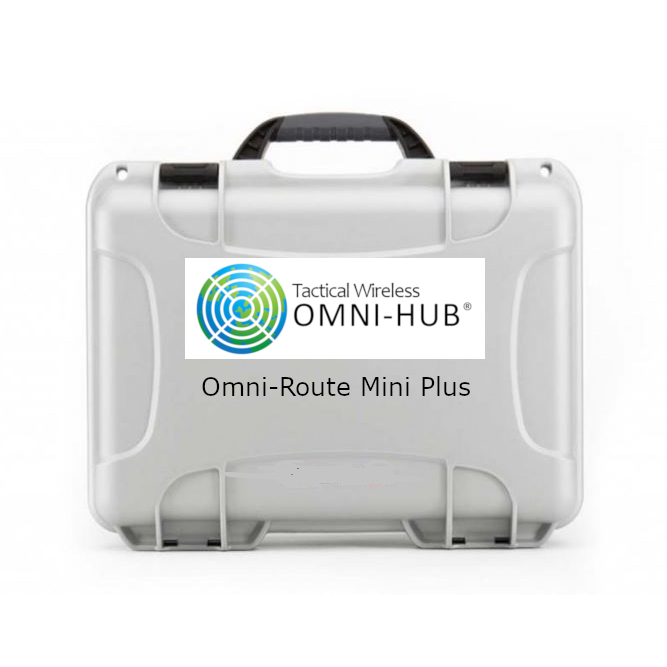

Omni-Route Mini Plus Case

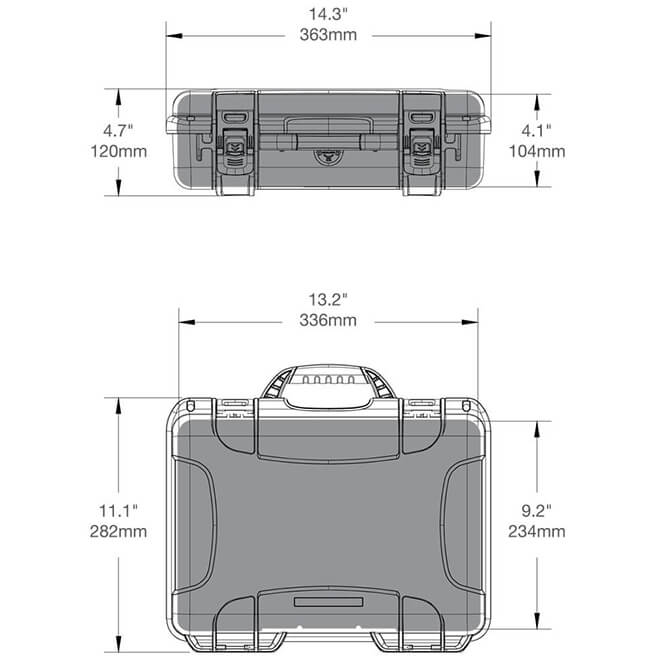

910 case dimensions
