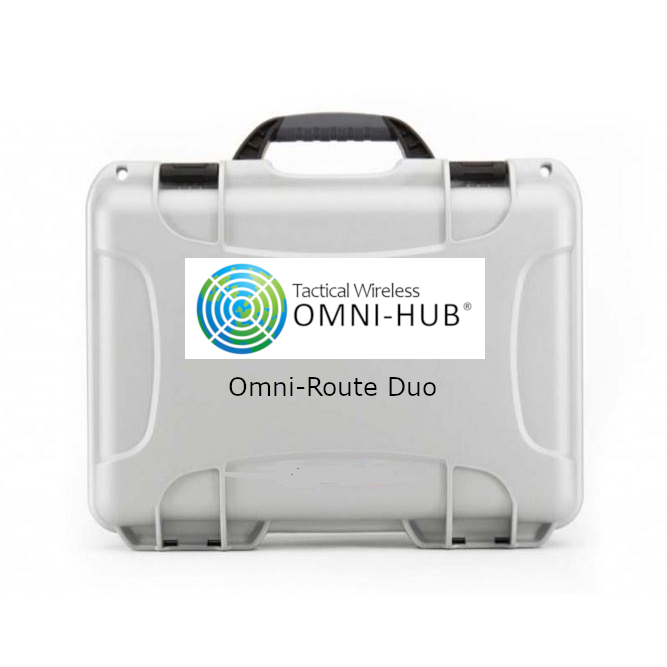

Omni-Route Duo Dual Cellular WAN - Tactical Wireless Ltd

Overview

Specification

Documentation

The Omni-Route Duo is designed to provide:

Dual Cellular WAN
- Two pairs of Data Sims - only one active at a time in each pair.
- SIM auto switch can be due to:
  - Active SIM signal level falling below a set level
  - Active SIM running out of its data allowance
16 WiFi access points
1 WiFi Wan

Feature	Number	Note
Antennas
WiFi	2
GPS	1
Cellular	4
WiFi LAN Access Point
Connection Type	2.4 / 5 Ghz	4
Max SSID's	16
Max Users	150	3
RJ45 LAN
Ports	Optional	9,10
WAN's
Cellular Modem	2	7
SIM's	4	6
WiFi	1
RJ45	Optional	5,9,10
USB	0
Configuration
Operates on Omni-Hub.Net	Optional
SpeedFusion Features	2 peers - optional	1,8
Omni-Serve	No
HDMI, HDSDI or Analogue Video input	No
Power
Built in battery 10 Ah	1
External 3A mains charger	1
External 12 volt vehicle charger	1
Internal wide range voltage PCB input	No
Approximate run time from full charge - Hours	8+
Case
Approximate Weight - Kg	6
Certification	CE
Dimensions (L x W x H)	L14.3" x W11.1" x H4.7" L363mm x W282mm x H120mm
Padlock holes	0.3"
Base unit colour is black.		2
Notes
1. Option to have up to 20 peers.
2. Options for other colours.
3. This is not a hard limit. It is based on a fair distribution of process types.
4. The frequency range for 802.11b/g/n Wi-Fi and 802.11ac/a/n Wi-Fi are 2412−2472 MHz and 5180−5825 MHz respectively
5. Physical LAN as WAN.
6. Each Modem can operate on 1 SIM. 2nd SIM is for redundancy.
7. Modem is LTE. LTE-A is option.
8. Use of SpeedFusion features requires Peplink head end.
9. Speed 10/100/1000 Mhz
10. RJ45 ports can be added to the case, to utilise the router RJ45 ports but standard operation is via WiFi. The Plus models use one router LAN port for the in-built Omni-Serve.
