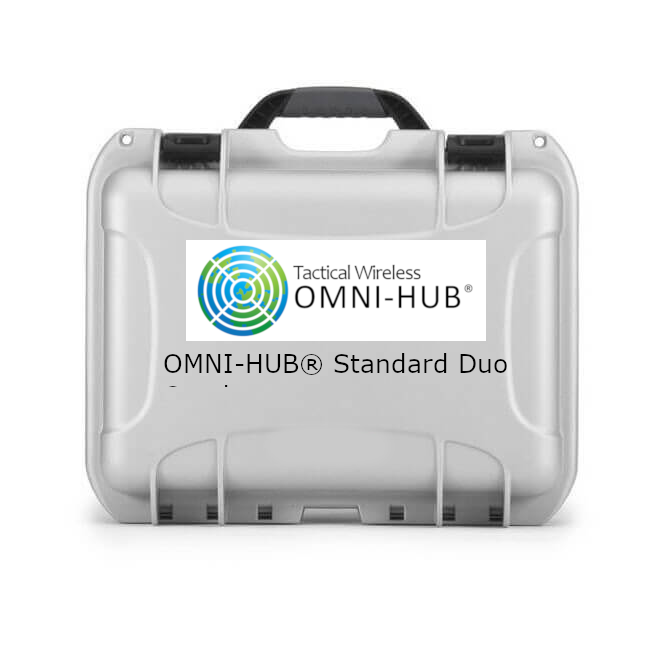

OMNI-HUB® Standard Duo

The OMNI-HUB ® Standard Duo is similar to the Omni-Route ® Duo with added video management.

Overview
Specification
Documentation

The OMNI-HUB® Standard Duo is designed to  provide:

  • Dual Cellular WAN
    • Two pairs of Data Sims - only one active at a time in each pair.
    • SIM auto switch can be due to:
      • Active SIM signal level falling below a set level
      • Active SIM running out of its data allowance
  • 16 WiFi access points
  • 1 WiFi WAN
  • Video Management
Feature Number Note
Antennas
WiFi 2
GPS 1
Cellular 4
WiFi LAN Access Point
Connection Type 2.4 / 5 Ghz 4
Max SSID's 16
Max Users 150 3
RJ45 LAN
Ports 1 9
WAN's
Cellular Modem 2 7
SIM's 4 6
WiFi 1
RJ45 1 5,9
USB 0
Configuration
Cooling Yes 13
Operates on OMNI-Hub.NET Yes
SpeedFusion Features 2 peers - optional 1,8
Processor i3 Embedded 11,12
Disc 128GB SSD 10
Memory 8GB
External USB 1
10.4” LCD Screen and IP67 Keyboard Yes
Operating System Windows 10 Pro
Power
Built in battery 8 Ah 2
External 3Amp mains charger 2
External 9-36v DC input-battery bypass 1
External 12 volt vehicle charger 2
Approximate run time from full charge - Hours 8
Case
Approximate Weight - Kg 12
Certification CE
Dimensions (L x W x H) L16.7” × W13.4” × H6.8” L424mm × W340mm × H173mm
Padlock holes 0.3"
Base unit colour is black. 2
Notes
1. Option to add up to 20 peers.
2. Options for other colours.
3. This is not a hard limit. It is based on a fair distribution of process types.
4. The frequency range for 802.11b/g/n Wi-Fi and 802.11ac/a/n Wi-Fi are 2412−2472 MHz and 5180−5825 MHz respectively
5. Physical LAN as WAN.
6. Each modem can operate on 1 SIM per modem only.
7. Modem is LTE. LTE-A available as option.
8. Use of SpeedFusion features requires Peplink head end.
9. Speed 10/100/1000 Mhz
10. Up to 1TB optional.
11. i3 Embedded-32Bit as standard on the sealed system and i5 & i7 optional upgrade for the fan cooled version. ( i5 / I7 optional)
12. CPU to match inputs i3, i5, or i7.
13. Choice of sealed unit with heat conducted to a finned heat exchanger or fan cooled.
Document Name Download Last update
Datasheet On Request
Quick start quide On Request
Video Management Guide On Request

Primary Sidebar

Example OMNI-HUB® Standard
920 case dimensions
